RNA Ladder
The RNA Ladder, comprising seven single-stranded RNAs (0.2 k, 0.5 k, 1 k, 2 k, 3 k, 4 k, and 6 k), is synthetically generated through in vitro transcription from a blend of seven linear DNA templates. This ladder serves as an effective tool for determining the size of single-stranded RNAs in native agarose gel electrophoresis. Visualization can be achieved using UV light post-ethidium bromide staining or nucleic acid safety dye staining. Notably, it acts as a reliable ssRNA size standard on native agarose gels.
-
Versatile RNA ladder covering standard transcript sizes up to 6,000 nt
-
Optimized for routine RNA analysis with clear, consistent banding
Quality Control Testing
The banding pattern of RNA ladder on 1% TAE or TBE agarose gels shows clear identifiable bands at each fragment, when stained with nucleic acid safety dye under UV light.
Storage Buffer
1 mM sodium citrate buffer (pH 6.4)
Storage & Stability
This product is stable for 10 months after storage at -80°C and avoid repeated freeze/thaw cycles.
Handling Instruction
For optimal storage, aliquot the reagent into smaller quantities and store at recommended temperature.
Please promptly retrieve the required portion and return it to the appropriate storage temperature.
Recommended to Use
Ladder preparation for Electrophoresis
1. Mix 1 volume of RNA ladder with 3 volumes of 2X RNA Loading Dye.
2. Incubate at 65°C for 5 minutes.
3. Immediately place it on ice for 1-2 minutes.
4. Load 0.2 μL of the prepared ladder for every mm of gel lane width (e.g., 1.6μL for an 8 mm lane).
Applications
Electrophoresis
Note
1. To avoid ribonuclease contamination, using RNase-free water is necessary for sample dilution.
2. We do not recommend use of these markers as a quantitative standard.
Shipping Conditions
Dry ice
The banding pattern of RNA ladder on 1% TAE or TBE agarose gels shows clear identifiable bands at each fragment, when stained with nucleic acid safety dye under UV light.
Storage Buffer
1 mM sodium citrate buffer (pH 6.4)
Storage & Stability
This product is stable for 10 months after storage at -80°C and avoid repeated freeze/thaw cycles.
Handling Instruction
For optimal storage, aliquot the reagent into smaller quantities and store at recommended temperature.
Please promptly retrieve the required portion and return it to the appropriate storage temperature.
Recommended to Use
Ladder preparation for Electrophoresis
1. Mix 1 volume of RNA ladder with 3 volumes of 2X RNA Loading Dye.
2. Incubate at 65°C for 5 minutes.
3. Immediately place it on ice for 1-2 minutes.
4. Load 0.2 μL of the prepared ladder for every mm of gel lane width (e.g., 1.6μL for an 8 mm lane).
Applications
Electrophoresis
Note
1. To avoid ribonuclease contamination, using RNase-free water is necessary for sample dilution.
2. We do not recommend use of these markers as a quantitative standard.
Shipping Conditions
Dry ice

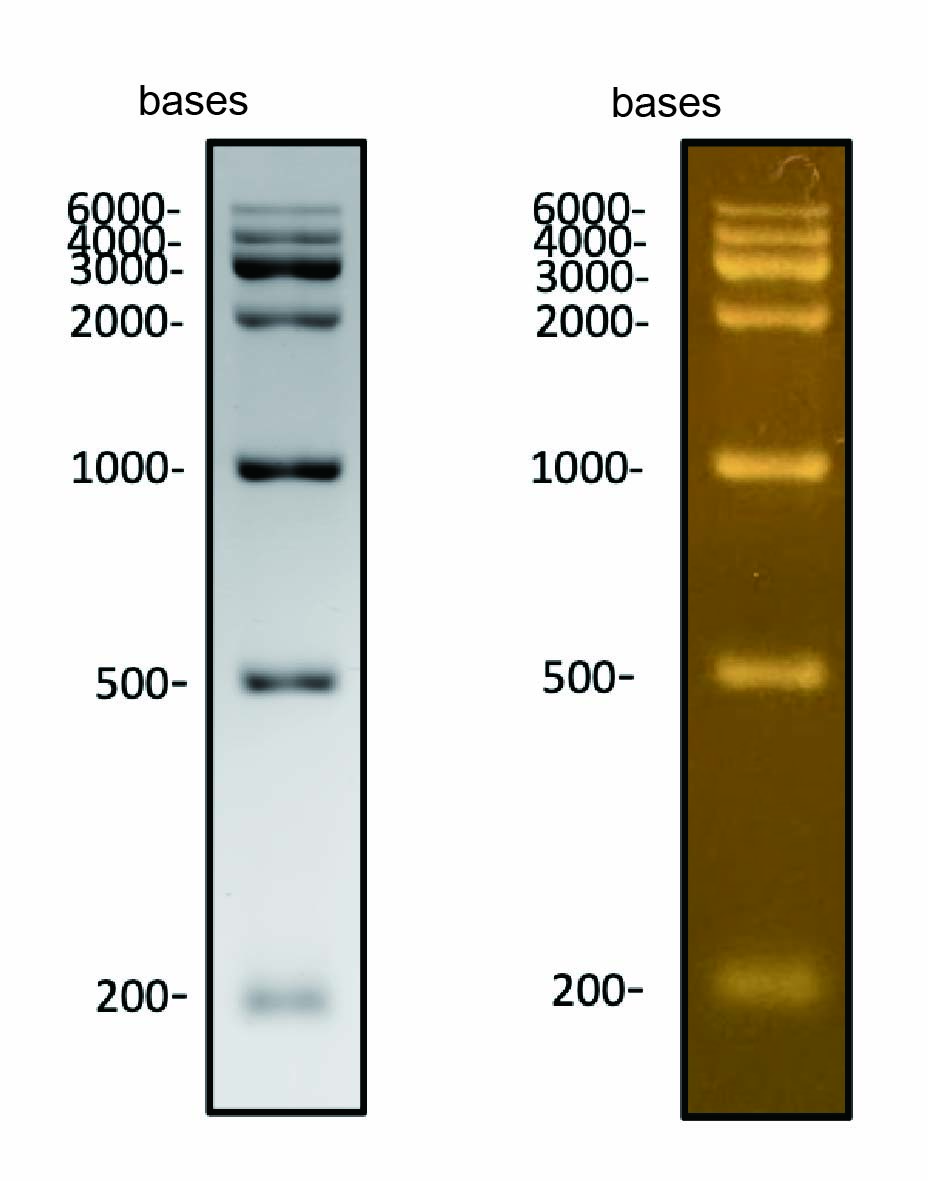

Figure 1:
The RNA ladder contains various ssRNA sizes up to 6,000 nt on a 1% E-gel..png)

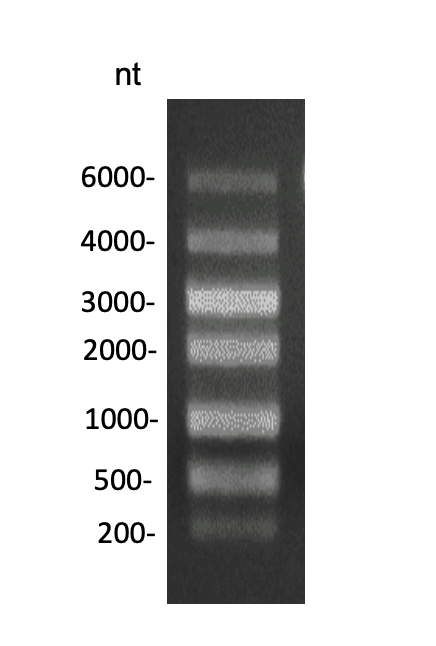

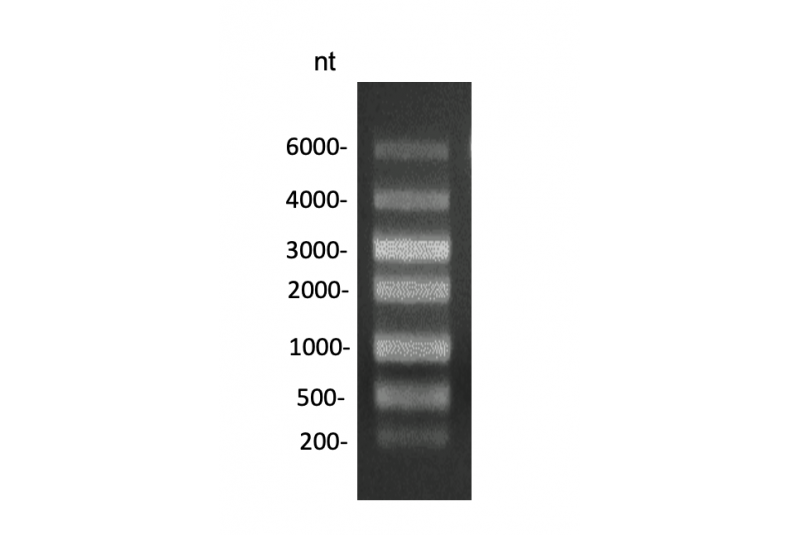

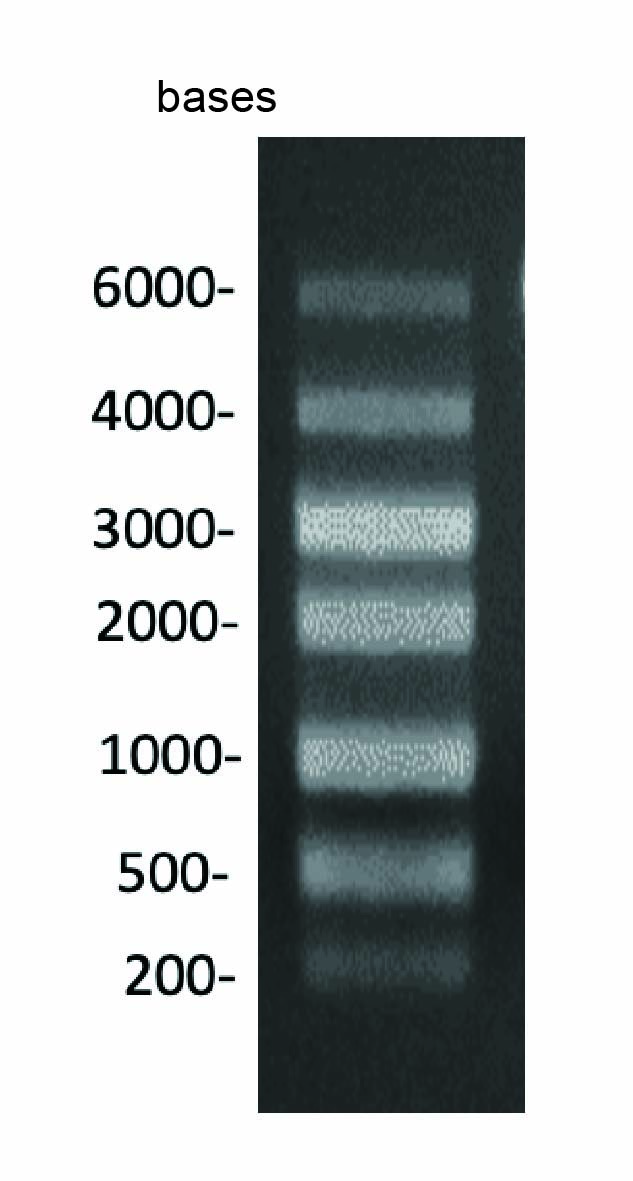

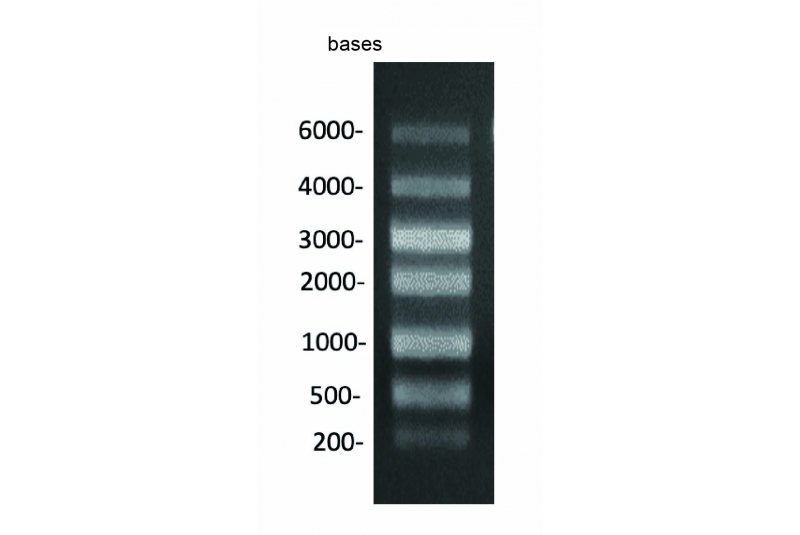

Figure 2:
The RNA ladder contains various ssRNA sizes up to 6,000 nt on a 1% TAE agarose gel.
.png)

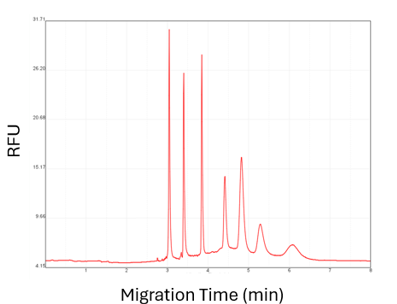

Figure 3:
Capillary Electrophoresis High-Resolution capillary electrophoresis separation of RNA ladder.
